Power Supply Options

AA-Batteries (3Ah)​

Only for LoRaWAN products

Only our LoRaWAN hardware supports two AA-Batteries inside the Lobaro Box Housing.

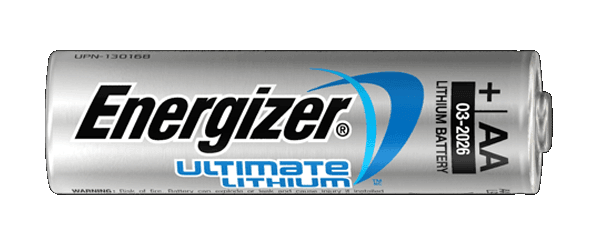

We recommend to use Energizer Ultimate Lithium for our products.

  • Size: AA-Cell
  • Voltage: 1.5V
  • Capacity: up to 3Ah
  • Operating temperature: -40°C...+60°C

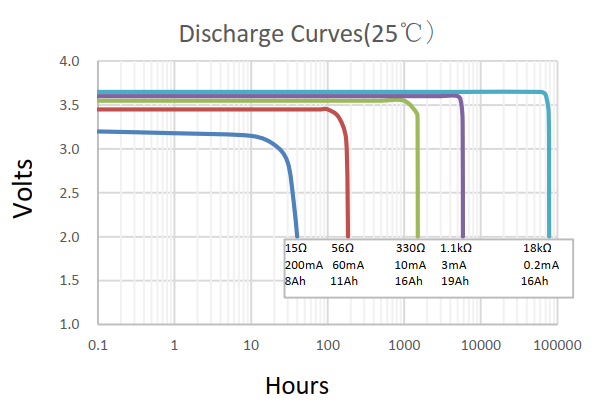

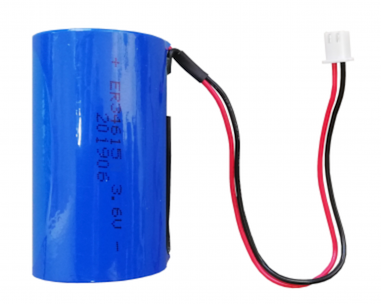

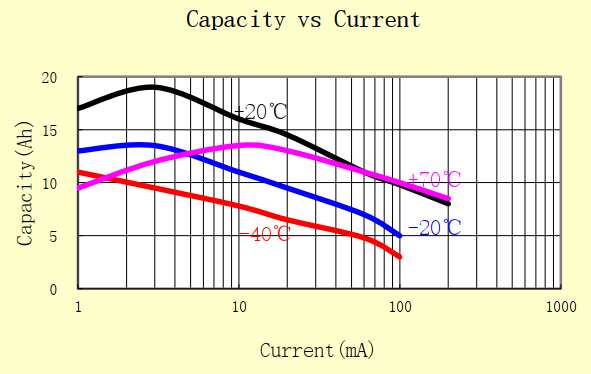

ER34615 3.6V Battery (D-Cell, 19Ah)​

  • Size: D-Cell (34mm x 61.5mm)
  • Connector: JST XH series
  • Voltage: 3.6V
  • Continuous Discharge Current: 200mA (max.)
  • Capacity: up to 19Ah
  • Operating temperature: -55°C...+60°C
  • Li-SOCl2 (not rechargeable)

A reasonable alarm value for "Low Voltage" is around 3.2V - some devices might work on lower voltages.

ER34615M 3.6V Battery (D-Cell, 19Ah)​

Similar to ER34615 but supports higher peak currents and is used for NB-IoT devices.

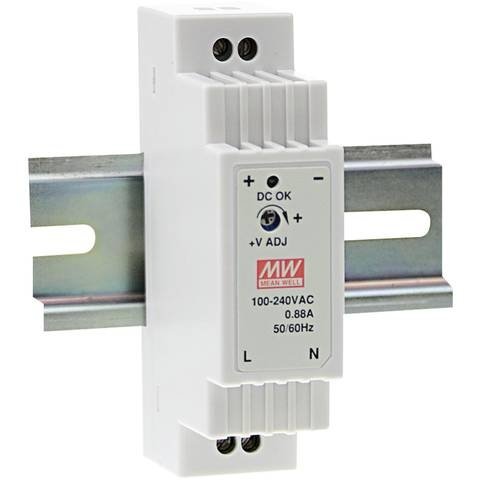

230V External Supply (5VDC)​

Can be used standalone on an existing DIN-Rail or inside the DIN-Rail Housing.
