Datasheet (MultiTemperature V2)
Revision 1.0 (03.2021)
 |  |

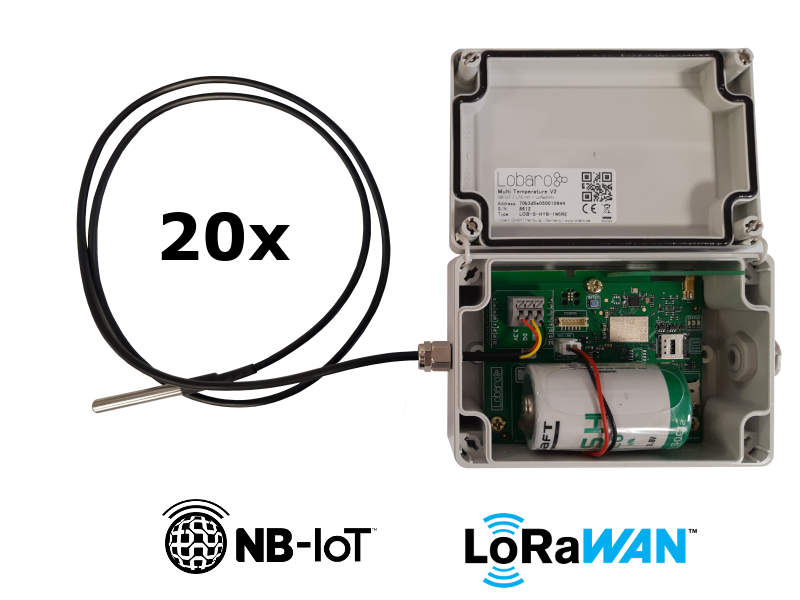

Bild entspricht nicht der aktuellen Version! Sensorausführung an der kurzen Seite.
| Technical characteristics | |
|---|---|
| Types | LOB-S-HYB-1WIRE |
| Description | Multi Temperatur V2 (LoRaWAN, NB-IoT, 1m sensor) |
| Order number: | 8000170 (LOB-S-HYB-1WIRE) |
| Order number (Variant): | - |
| LoRaWAN Specifications | |
| LoRaWAN Protocol | Class A LoRaWAN 1.0.2 EU868 |
| Activation method | Over-the-air activation (OTAA) Activation by personalization (ABP) |
| Typically RF range | ≤ 2km |
| Ideal RF range | ≤ 10km (free line of sight) |
| TX Power | ≤ 14 dBm |
| Remote configuration | supported |
| NB-IoT Connectivity | |
| LTE SiP | Nordic nRF9160 |
| Antenna |
|
| Supported LTE Band |
|
| SIM card slot | 4FF (Nano SIM) |
| Supported LTE modes |
|
| Firmware Features |
|
| I/O & Sensors | |
| Internal Temperature Sensor | 1x internal |

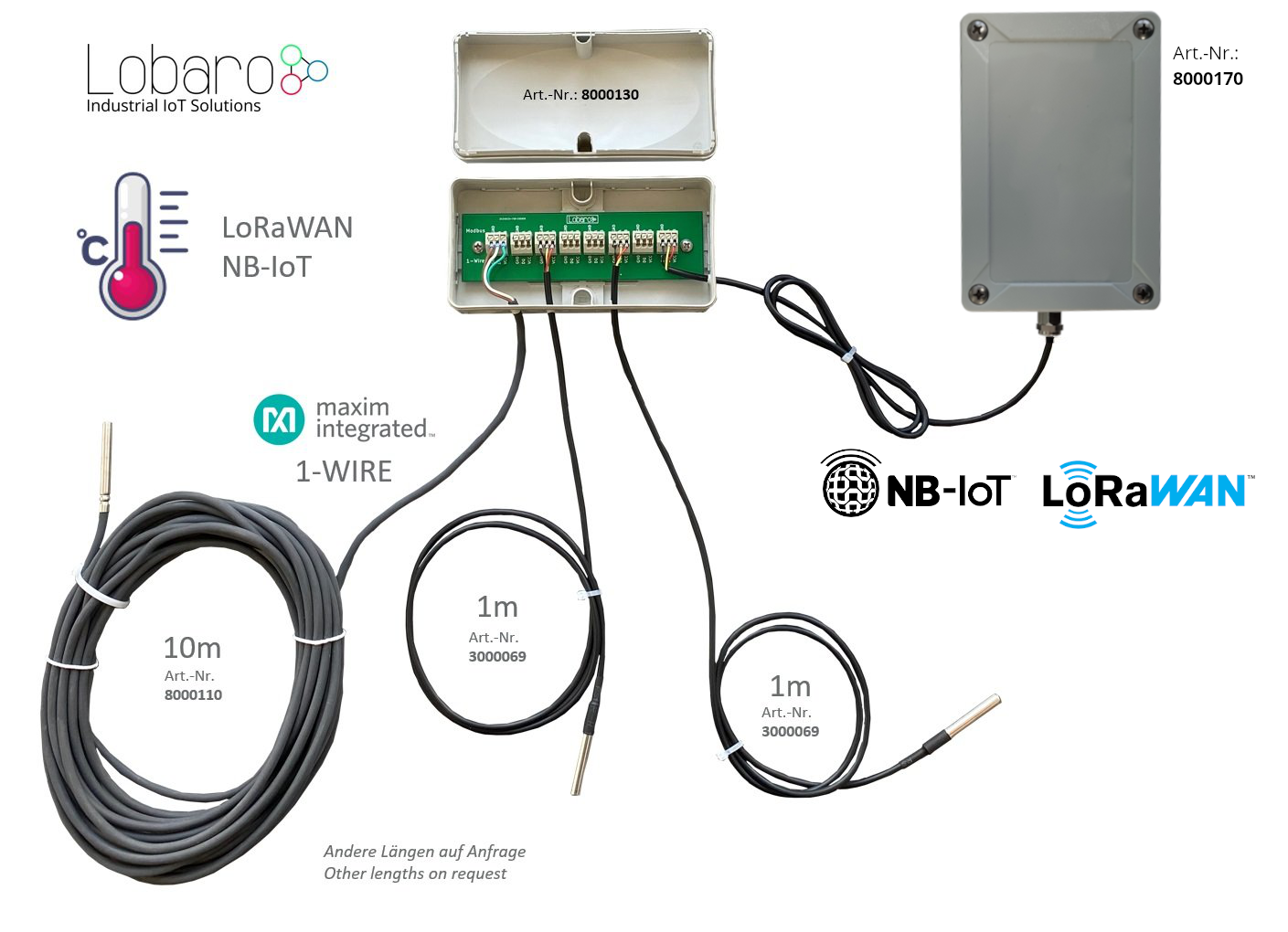

| External 1-Wire temperature sensor bus | For up to 25 additional 1-Wire DS18B20 temperature sensors. Connected in start or serial configuration |
| Local configuration port | PC based initial configuration via USB adapter |
| Internal LED | RGB Led to signal different operating modes |
| Power Supply | |
| Supply Voltage Connection | JST-XH connector |
| Nominal Supply Voltage | 3.6V |
| Supply Voltage Range | 3 - 3.6V |
| Power supply | Lobaro ER34615M 3.6V primary battery (D-cell) |
| Current consumption @3.6V | |
| Normal / Idle | ≤ 3 mA |
| LoRa RX | ≤14 mA |
| LoRa TX | ≤80 mA |
| Sleep with RTC running | ≤15 µA |
| Mechanical dimensions | |
| Size | 130 mm x 82 mm x 55 mm (incl. pressure compensating element) |
| Weight | 220g (excl. Battery) + Battery: ca. 114g |
| Housing Material | Industrial polycarbonate |
| Rating | IP66 including pressure compensating element |
| Environmental Requirements | |
| Operating temperature range | -20°C to +55°C |
| Max. Installation height | 2m |
| Conformity | |
 |
|
