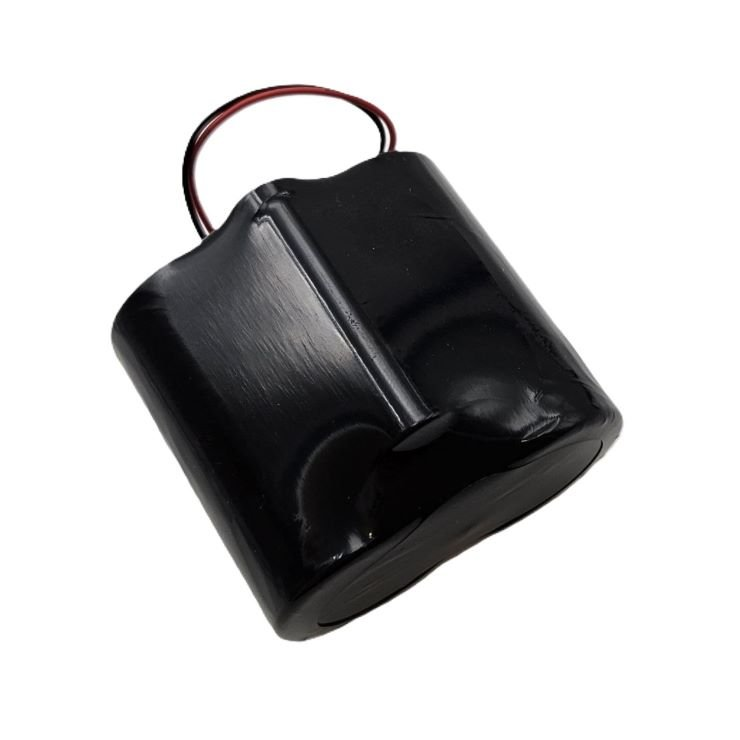

38Ah Battery Pack
Battery pack for the Gateway V4 Series. This is the standard battery shipped with the base Gateway V4.
Specifications
| Property | Value |
|---|---|
| Cell type | 2× ER34615 (D-cell) + SPC1550 (EVE Energy Co., Ltd.) |
| Manufacturer part no. | ER34615-2+SPC1550A/W |
| Voltage | 3.6 V |
| Capacity | 38 Ah |
| Chemistry | Li-SOCl₂ (non-rechargeable) |
| Dimensions | 62 × 67 mm |
| Connector | 2-pin JST XH |
| Weight | 0.225 kg |
Hazardous goods
This battery is classified as Dangerous Goods Class 9 — UN3090 when shipped standalone, UN3091 when shipped installed in the gateway. Observe applicable shipping and handling regulations.
The Material Safety Data Sheet (MSDS) contains hazard information, handling instructions, first-aid measures, and disposal guidelines required for safe transport, storage, and handling of lithium batteries.
 | Datei nicht verfügbar |
The UN38.3 test report is available on request — contact support@lobaro.de.
Ordering
| Product | Order code |
|---|---|
| Battery 2× ER34615 (D-cell) + SPC1550 | 1200282 |
Contact sales@lobaro.de for orders.
