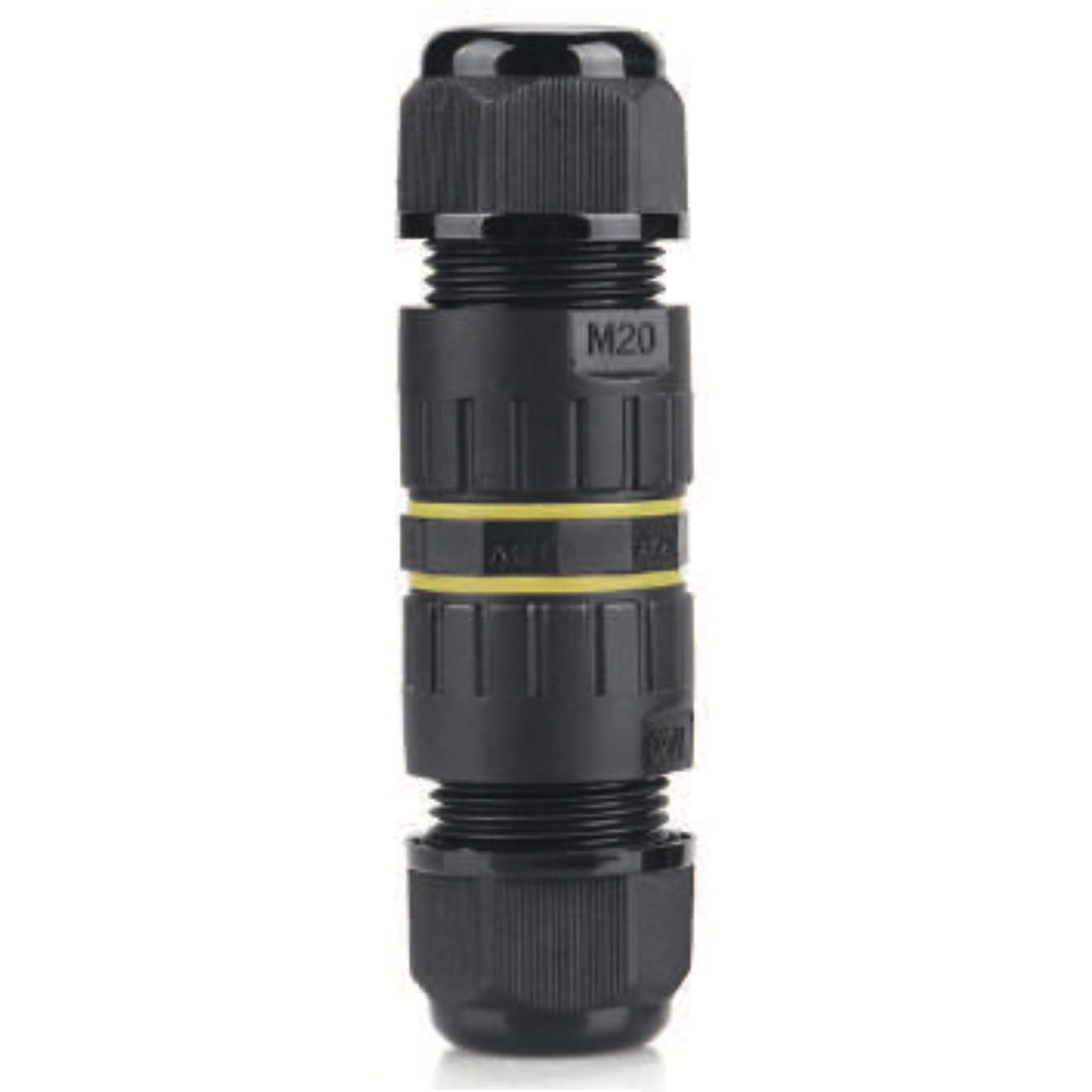

IP68 Inline Cable Connector (4-pin)
The 4-pin IP68 inline cable connector is the ideal accessory for Aviation-style (SP13) connectors with open cable ends, which are commonly included as standard with Lobaro gateways and devices. It allows a quick, secure, and waterproof connection to an existing cable — no special tools required.
Key Specifications
| Property | Value |
|---|---|
| Poles | 4-pin |
| Cable outer diameter | 5–9 mm |
| Stripping length | 6–8 mm |
| Wire cross-section | 0.5–2.5 mm² |
| Housing | PA66, silicone seal, screw terminals |
| Rated voltage | 400 V / 24 A |
| Temperature range | −40 °C to +105 °C |
| Protection rating | IP68 |
| Thread | M20 |

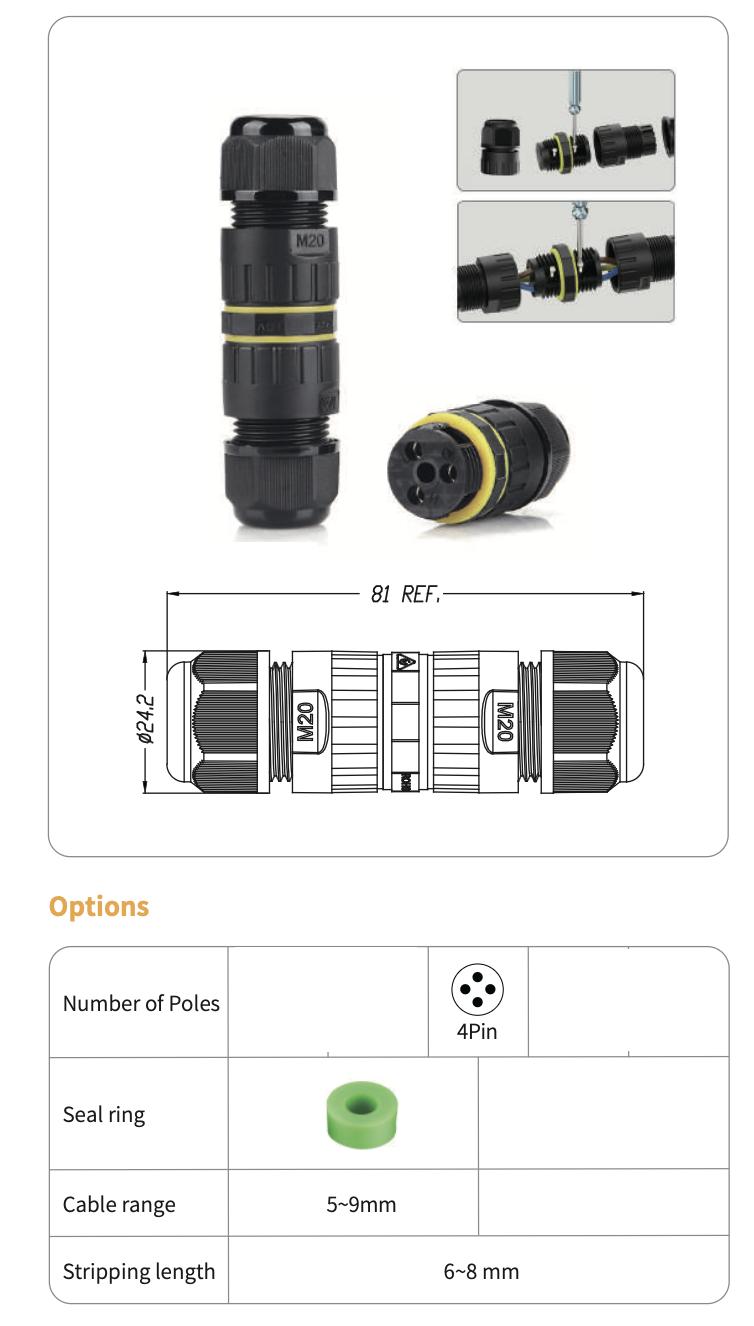

| Dimensions | Ø 24.2 mm × 81 mm |
Assembly

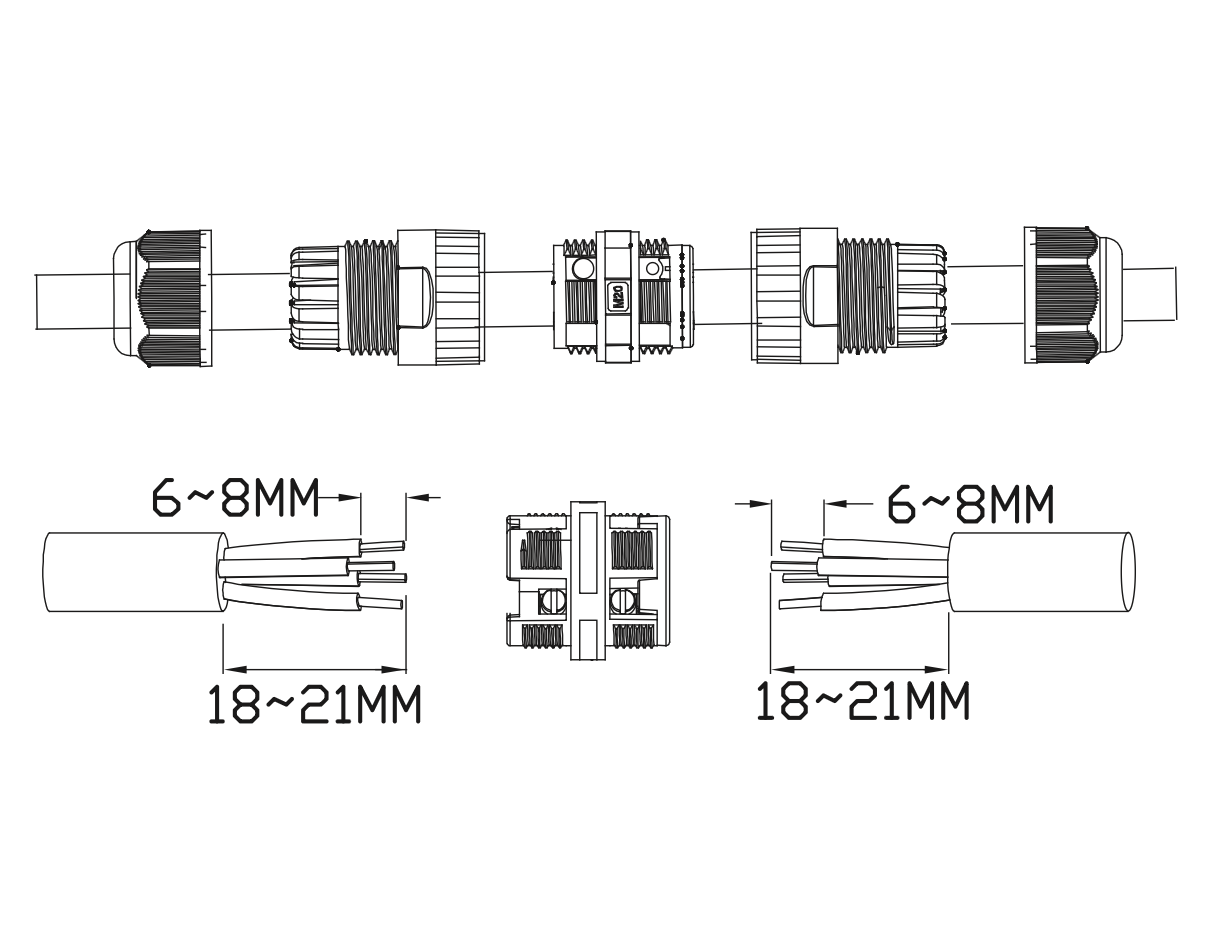

Cable Preparation
Strip both cable ends 6–8 mm and insert them from both sides. The connector accommodates cables with an outer diameter of 5–9 mm.
Compatible Products
This connector is suitable for use with all Lobaro gateway variants that use an SP13 connector:
Ordering
| Variant | Order code |
|---|---|
| IP68 Inline Cable Connector (4-pin) | 1200163 |
Other pin counts available on request — contact sales@lobaro.de.
