LoCube Mast Mount

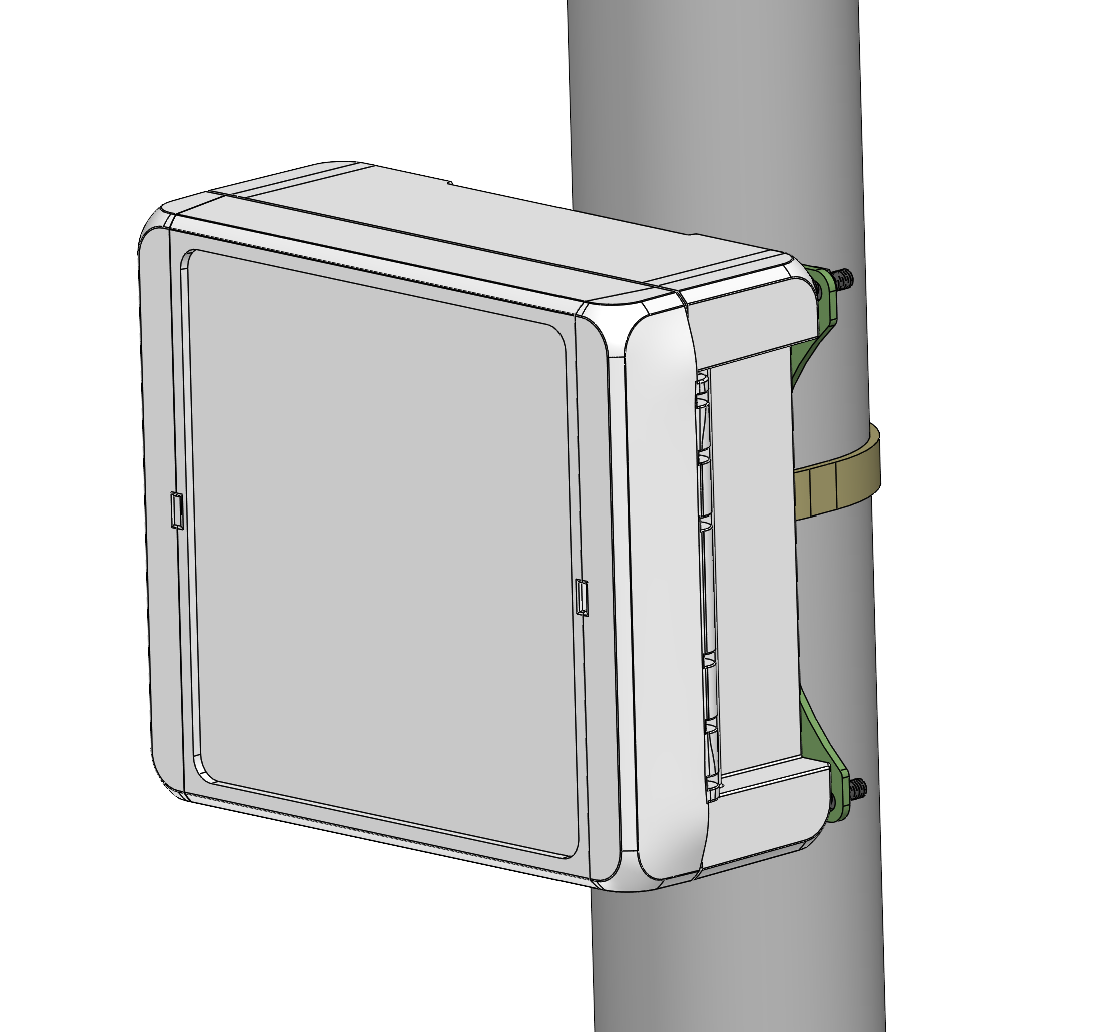

Metal mast mount for securely attaching the Lobaro Gateway V4 Series to a vertical pole or mast. Two metal brackets bolt to the LoCube enclosure and are fixed to the pole with a metal band clamp (hose clamp).
Unlike the plastic LoCube Wall Mount, which is limited to horizontal pipes, the metal mast mount is designed for vertical mast installation.
For vertical pole or mast installation, always use this metal mast mount. Do not use the plastic wall mount with cable ties or a band clamp on a vertical pole — the device may slip or fall over time.
Installation

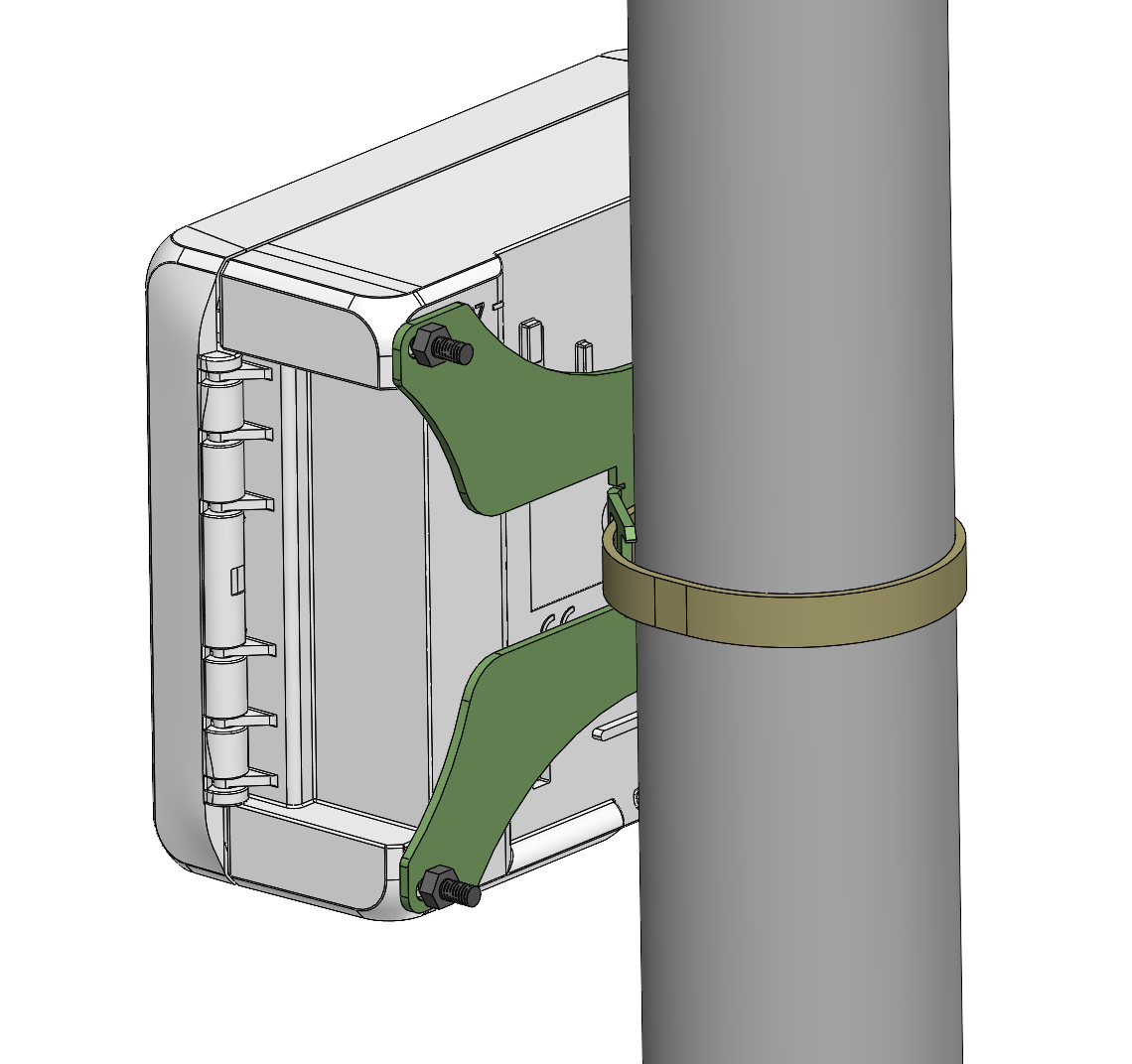

The two metal brackets are bolted to the mounting points on the back of the LoCube enclosure. A metal band clamp is then routed around the pole and through the brackets to clamp the device firmly to the mast.
Compatible Products
The mast mount fits all Gateway V4 Series devices in the LoCube enclosure:
- Gateway V4
- Gateway V4 + M-Bus
- Gateway V4 + Modbus
- Gateway V4 + Temperature
- Gateway V4 + 4-20 mA
- Gateway V4 + Ethernet
Ordering
Contact sales@lobaro.de for ordering information.
