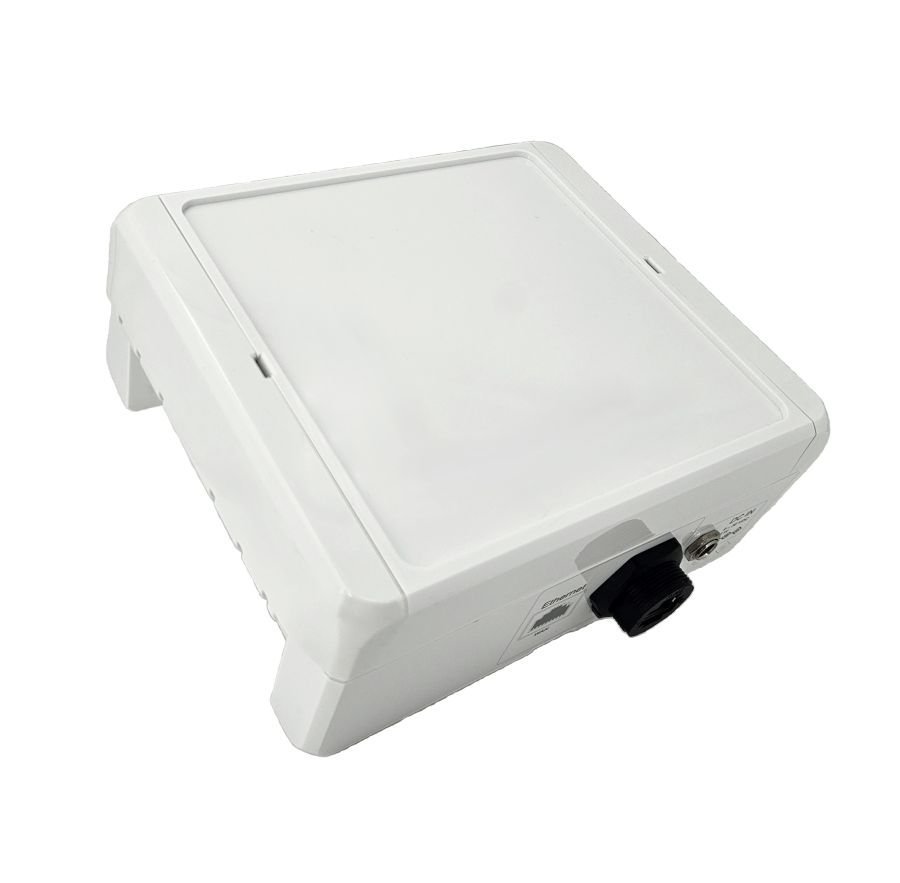

Gateway V4 + Ethernet
Wireless M-Bus Gateway V4 with the Ethernet add-on — adds an Ethernet WAN port and Modbus TCP.
Detailed connection diagrams are being finalized — contact sales@lobaro.de for current availability.
Description
Gateway for remote reading of wireless M-Bus, wired M-Bus and Modbus values via NB-IoT, LTE-M or LoRaWAN, with an additional Ethernet WAN port (optional PoE) that also enables Modbus TCP reading. Suitable for indoor and weather-protected outdoor installation.
Features
All Gateway V4 Series platform features plus:
- Ethernet WAN port (optional PoE), with Ethernet or Ethernet + LTE-fallback uplink
- Modbus TCP over Ethernet
Product Components
- Firmware
- app-nrf91-origin · Firmware updates
- Housing
- LoCube — 122 × 82 × 55 mm
- Power supply
- Battery 38 Ah (Li-SOCl₂, 3.6 V) · External 12 V DC or 230 V AC available
- Optional accessories
- External antenna (SMA) · IP68 encapsulation · LoCube wall mounting kit · Pole mounting kit
Connections
The Ethernet gateway adds a single Ethernet port to the standard Gateway V4:
- Ethernet port — WAN uplink (Ethernet / Ethernet + LTE fallback) and Modbus TCP, optional PoE
- Power — see Power Supply Options
For the Ethernet uplink and Modbus TCP configuration (WAN modes, ipAddress, modbusCmdConf), see the Ethernet Add-On configuration.
Detailed terminal pinouts and CAD connection drawings for this variant are being prepared. Contact sales@lobaro.de if you need wiring details before installation.
Product Identification
- Name: Wireless M-Bus Gateway V4 Ethernet
- Type: LOB-GW4-ETHERNET
- Order code:
1200880-6
Accessories
| Accessory | Notes |
|---|---|
| LoCube Wall Mount | Optional — wall or horizontal pipe |
| LoCube Mast Mount | Metal bracket for vertical pole / mast mounting |
| USB Config Adapter | For local configuration, diagnostics, and firmware updates |
LED Signal Patterns
The device uses the standard V4 LED signal patterns. See LED Signal Patterns for the full reference.
Configuration
The device is shipped with default configuration parameters. Local changes can be made via the config port using the USB Config Adapter and the Lobaro Config Tool.
For step-by-step instructions, see the Configuration Methods guides:
- 🔌 Local Config via USB — connect directly to the device
- 📡 Remote Config via CoAP — over NB-IoT / LTE-M via Lobaro Platform
- 📻 Remote Config via LoRaWAN — via LoRaWAN downlink
- 🔗 Remote Config via MQTT — for 3rd party MQTT backends
Custom factory configuration is available on request — devices can be pre-configured at production for your specific deployment. Contact sales@lobaro.de when ordering.
Configuration Parameters
This product runs the app-nrf91-origin firmware:
Firmware Updates
The latest firmware can be found here:
- Download latest firmware
-
For further information on how to update the device, refer to: Firmware Update.
A remote firmware update over LoRaWAN is currently not possible.
LoRaWAN Uplink Formats
- LoRaWAN Protocol — Status Packet (Port 1) and wM-Bus uplink formats
- Ethernet Add-on LoRaWAN Uplinks
Cellular Uplink (LTE)
Uplink Parser
A production-ready parser for the uplinks of this device is implemented within the Lobaro Platform. It covers the wireless M-Bus telegrams (including split telegram reassembly where applicable, AES-128 decryption for encrypted telegrams, and OMS-compliant data interpretation) as well as the add-on data of the respective variant, for example Modbus responses or sensor values.
Customers using the Lobaro Platform can utilize this parser directly as part of the platform processing pipeline.
If you are operating a Lobaro Gateway without using the Lobaro Platform, we can provide restricted platform access upon request. This allows you to inspect the parser behavior and use it as a technical reference for your own backend implementation.
Please contact our support team if you require access or further integration details.
