FAKRA Indoor Antenna (Panorama IN2214)

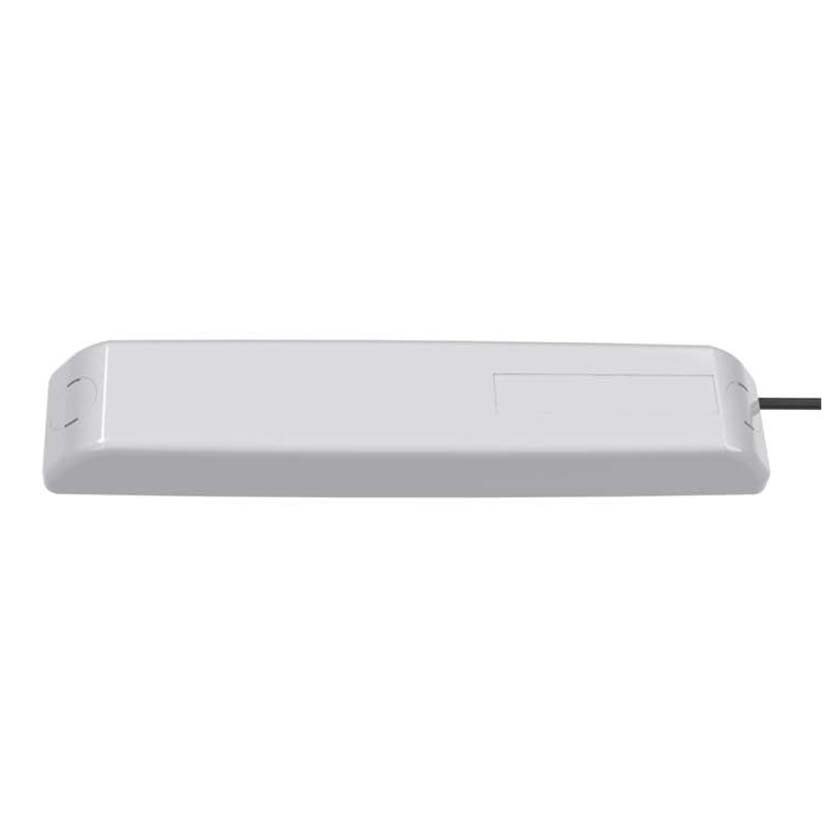

The Panorama Antennas IN2214 is a low-profile multiband antenna for indoor wall mounting. It covers LTE (NB-IoT / LTE-M) as well as 868 MHz wM-Bus and LoRaWAN with one element. The 3 m cable ends in a right-angle FAKRA Code D jack that plugs directly into the antenna connector of the Gateway V4 + DIN-Rail.
Use it when the gateway sits in a closed metal cabinet: route the cable out of the cabinet and mount the antenna outside it.
Specifications
| Property | Value |
|---|---|
| Order code | 1201450 |
| Frequency range | 698–960 MHz and 1710–2700 MHz |
| VSWR | < 2:1 (typical) |
| Peak gain | 2 dBi |
| Radiation pattern | Omnidirectional |
| Impedance | 50 Ω |
| Cable | RG174, Ø 2.8 mm, grey, 3 m, with strain relief |
| Connector | Right-angle FAKRA Code D jack (violet) |
| Dimensions (L × W × H) | 165 × 32 × 19.6 mm |
| Housing | ASA, telegrey (RAL 7047) |
| Mounting | Adhesive pad (supplied) or 2 screws (4.8 mm, self-tapping) |
| Operating temperature | −30 °C to +70 °C |
Other FAKRA Code D antennas can be used as well, see the antenna requirements on the product page.
Compatible Products
Ordering
Order code: 1201450. For ordering information contact sales@lobaro.de.
