How to set up Mosquitto with a Let's Encrypt certificate

This how-to guides you through the setup of a Mosquitto MQTT broker with an automatically renewing Let's Encrypt certificate, obtained via Certbot.

Prerequisites​

To complete the how-to, the following is necessary:

warning

Due to missing support for P-384 certificates, Let's Encrypt certificates will not work with app-nrf91-origin firmware versions older than 0.14.0 and app-nrf91-secure versions older than 0.5.0!

If you need to update your gateway, follow the steps at Firmware Update.

info

If your broker is used solely by Lobaro gateways, you can also use a self-signed certificate authority instead. See How to set up Mosquitto with a self-signed certificate.

Install the necessary components​

Start by installing Certbot and Mosquitto on the server:

sudo apt update
sudo apt install certbot mosquitto

Create a Certbot Hook for Mosquitto​

Certificates signed by Let's Encrypt are only valid for a short time. Certbot will automatically renew the certificate before expiry, so we create a script that copies the renewed certificate into place and restarts Mosquitto.

  1. Add the following script:

    /etc/letsencrypt/renewal-hooks/post/mosquitto.sh
    #!/bin/bash

    # Set your domain name here
    DOMAIN="yourdomain.com"

    if echo "$RENEWED_DOMAINS" | grep -q "$DOMAIN"; then
        cp $RENEWED_LINEAGE/fullchain.pem $RENEWED_LINEAGE/privkey.pem /etc/mosquitto/certs/

        chown mosquitto:mosquitto /etc/mosquitto/certs/fullchain.pem /etc/mosquitto/certs/privkey.pem
        chmod 600 /etc/mosquitto/certs/privkey.pem
        chmod 644 /etc/mosquitto/certs/fullchain.pem

        systemctl reload mosquitto
    fi

  2. Make the script executable:

    sudo chmod +x /etc/letsencrypt/renewal-hooks/post/mosquitto.sh

Request a certificate​

To request a certificate, we will use the Certbot standalone mode, assuming your server is reachable from public internet and has nothing else running on it.

If you have a web server running, for example Nginx, or your machine is not reachable from public internet, you may need to use another method to obtain a certificate. See the Certbot Documentation.

Let's Encrypt is operating multiple Certificate Authorities with different key types. We highly recommend using an ECDSA only chain to reduce the size of certificates transferred during handshakes. Otherwise, the data usage may increase.

To find the current ECDSA only chain name, see this page: Let's Encrypt Chains of Trust. At the time of writing (July 2026), it is called "ISRG Root X2".

Now, to obtain a certificate, we can use this command:

sudo certbot certonly --standalone \
    --preferred-chain "ISRG Root X2" \
    -d yourdomain.com

Copy the certificate for Mosquitto​

The hook created in the previous step only runs when Certbot renews a certificate, not on this first issuance. To make the certificate available to Mosquitto now, copy it into place manually, once:

sudo cp /etc/letsencrypt/live/yourdomain.com/fullchain.pem /etc/letsencrypt/live/yourdomain.com/privkey.pem /etc/mosquitto/certs/

sudo chown mosquitto:mosquitto /etc/mosquitto/certs/fullchain.pem /etc/mosquitto/certs/privkey.pem
sudo chmod 600 /etc/mosquitto/certs/privkey.pem
sudo chmod 644 /etc/mosquitto/certs/fullchain.pem

From now on, every renewal is picked up automatically by the hook.

Set up Mosquitto​

  1. Create a mosquitto.conf with the following contents:

    /etc/mosquitto/mosquitto.conf
    listener 8883

    capath /etc/mosquitto/ca_certificates
    certfile /etc/mosquitto/certs/fullchain.pem
    keyfile /etc/mosquitto/certs/privkey.pem

    password_file /etc/mosquitto/pwfile

  2. Add the Lobaro Device CA to /etc/mosquitto/ca_certificates:

    sudo wget -O /etc/mosquitto/ca_certificates/lobaro-device-ca.pem https://manuals.lobaro.com/assets/files/lobaro-device-ca.crt-c90e1f12d86dad5a648e7379301de99f.pem
    sudo openssl rehash /etc/mosquitto/ca_certificates

  3. Add users to the password file. It is recommended to create separate users for each gateway. To generate a random password, you may use openssl rand -hex 16.

    # Create the password file
    sudo touch /etc/mosquitto/pwfile

    # Add username + password for each gateway
    sudo mosquitto_passwd /etc/mosquitto/pwfile 70b3d5e050020901

    # Add an admin login
    sudo mosquitto_passwd /etc/mosquitto/pwfile admin

  4. Ensure Mosquitto is run on system boot, and ensure it is restarted:

    sudo systemctl enable mosquitto
    sudo systemctl restart mosquitto

Test your broker​

Before connecting a gateway, verify that Mosquitto accepts connections using the admin login you created above:

mosquitto_sub -h yourdomain.com -p 8883 --tls-use-os-certs -u admin -P <password> -t '#'

--tls-use-os-certs tells mosquitto_sub to validate the server certificate against your system's trust store, which already trusts Let's Encrypt.

If the command connects without errors, your broker is ready.

Configure the Lobaro Gateway to connect to your broker​

To connect a Lobaro gateway to your broker, follow the steps of the Getting Started How-To.

In short, you need to connect to your gateway using the Lobaro Config Tool and then enter the MQTT connection string. Afterwards, the gateway should connect to your broker using its device certificate and should start sending data.

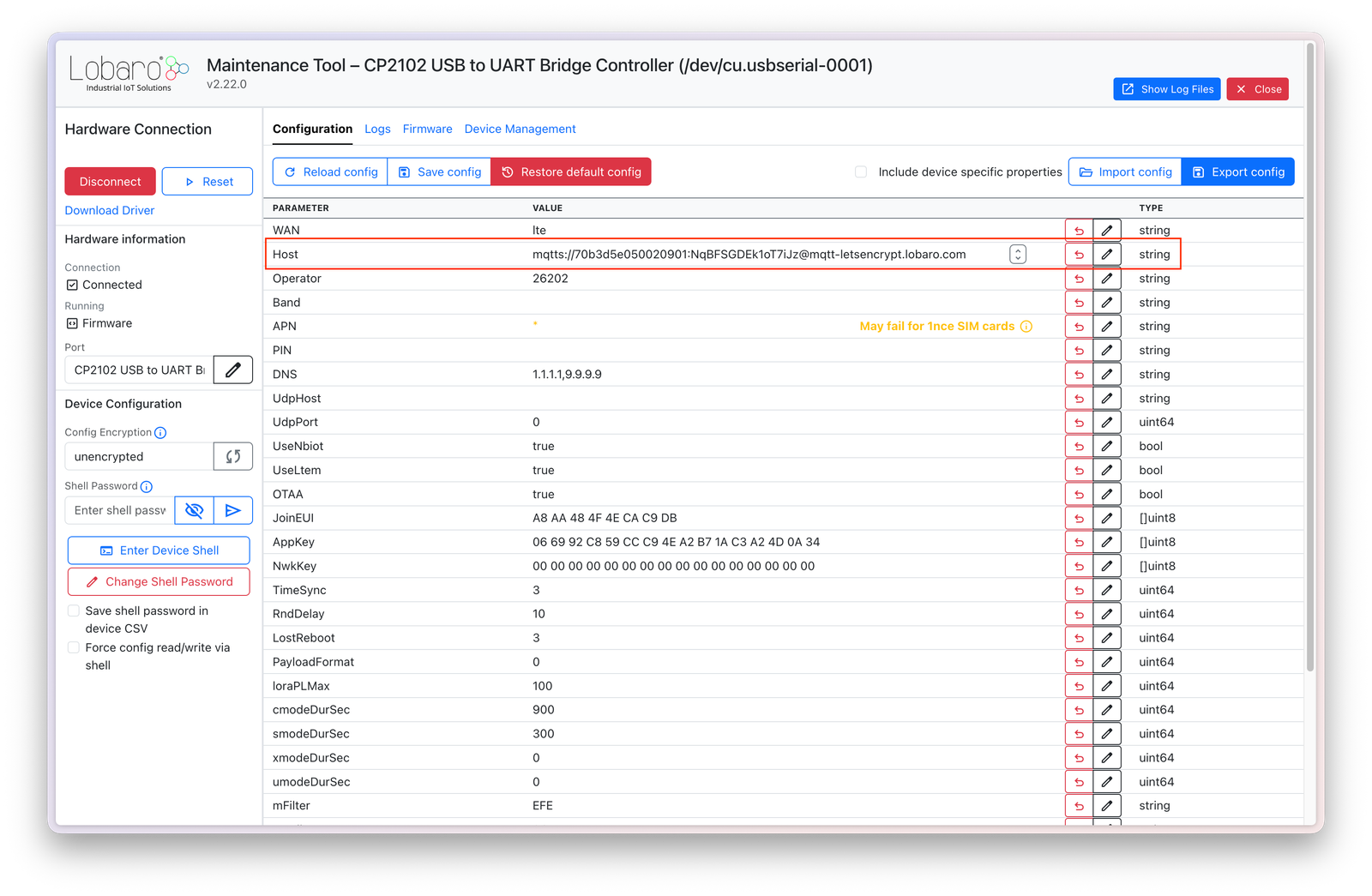

Lobaro Config Tool MQTT connection string field
